iGoldencnc 3d CNC Router Carving 1325 4 Axis Rotary Device 2d Engraving Woodworking Machine for Wood

FOB Reference Price:Get Latest Price
$4,229.00 - $5,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
iGoldencnc-1325
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 20 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Range of Spindle Speed(r.p.m):
1 - 18000 rpm
Positioning Accuracy (mm):
0.01 mm
No. of Spindles:
SINGLE
Working Table Size(mm):
1300×2500
Machine Type:
CNC Router
Travel (X Axis)(mm):
1300 mm
Travel (Y Axis)(mm):
2500 mm
Repeatability (X/Y/Z) (mm):
0.01 mm
Spindle Motor Power(kW):
3.5
CNC or Not:
CNC
Control System Brand:
NC studio
Place of Origin:
Shandong, China
Brand Name:
iGolden cnc
Voltage:
220V/380V
Dimension(L*W*H):
1300*2500*200mm
Certification:
CE
Power (kW):
3.5
Weight (KG):
1800
Warranty:
1 YEAR
After-sales Service Provided:
Field maintenance and repair service
Key Selling Points:
High productivity
Local Service Location:
none
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Showroom Location:
none
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, HOME USE, Retail
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
PLC
Product name:
cnc router 1325 4 axis
working area:
1300*2500*200mm
Spindle power motor:
3.5kw HQD water cooling spindle
spindle speed:
0-18000rpm/min
table structure:
Aluminum T slot/ vacuum table
XYZ structure:
XY Rack pinion ,Z Ball Screw
Command:
G code
Control System:
Nc studio/DSP
Dust collector:
YES
Rotary size::
2500*300mm
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard wooden case for iGoldencnc 3d CNC Router Carving 1325 4 Axis Rotary Device 2d Engraving Woodworking Machine for Wood
Port
Qingdao port
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 20 35 To be negotiated
Video Description
Product Description

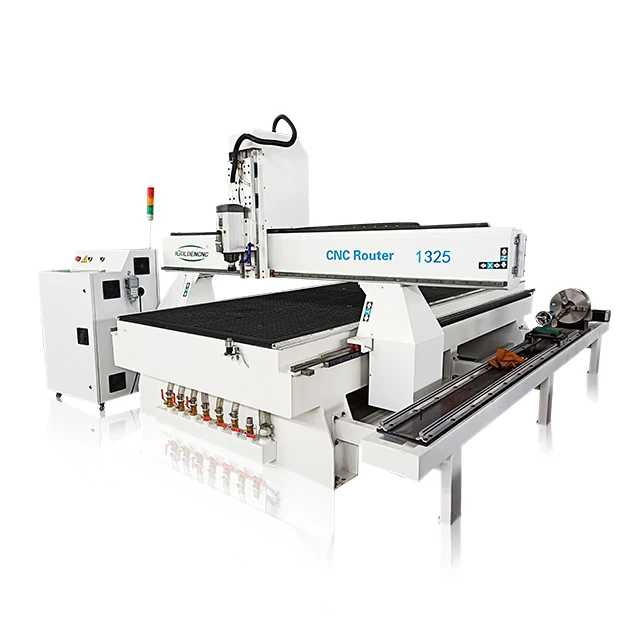

iGoldencnc 3d CNC Router Carving 1325 4 Axis Rotary Device 2d Engraving Woodworking Machine for Wood
1)-Model:
1325
2)-Structure:
Seamless steel welded
3)-Table:
Vacuum with T slot working table or Aluminum table
4)-XYZ working size:
1300*2500mm
5)-XYZ transmission:
XY axis is helical rack and gear,Z axis Ball Screw
6)-XYZ guide rail:
Famous Taiwan Hiwin Line 20mm Square guide way
7)-Spindle:
3.5kw HQD water cooling spindle
8)-Spindle collet:
2 pieces
9)-Inverter:
best inverter
10)-Motor:
Step motor
11)-Driver:
Step driver
12)-Controller system:
NC studio/DSP controller
13)-Voltage:
220/380v, 3phase 50HZ
14)-Software:
Artcam
15)-Router bits:
10pcs for free
16)-Lubrication:
YES
17)-Rotary size:
2500*300mm

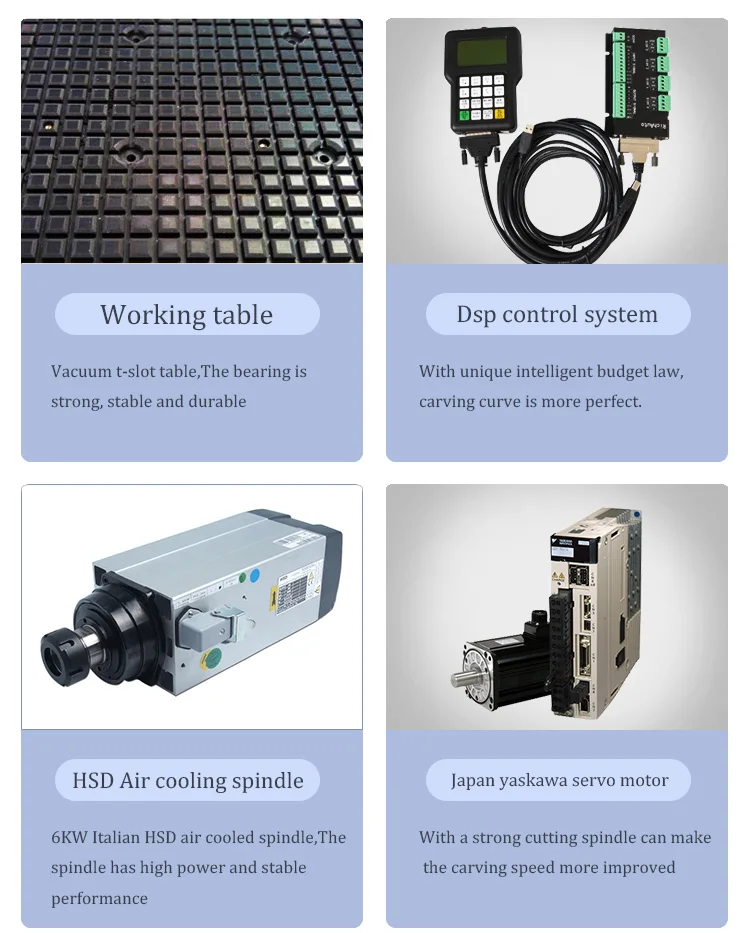

Detailed Images
Application :
Wood, aluminum, plastic, density board, MDF, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and
light metal material.
1.Woodworking Industry:wooden door, various furniture product, Wooden crafts. Etc
2.Advertising Industry: PVC, PCB, Double color boards, acrylic, plastic, etc
3. Other industry: such as tombstone, music instrucment, mould makeing, etc

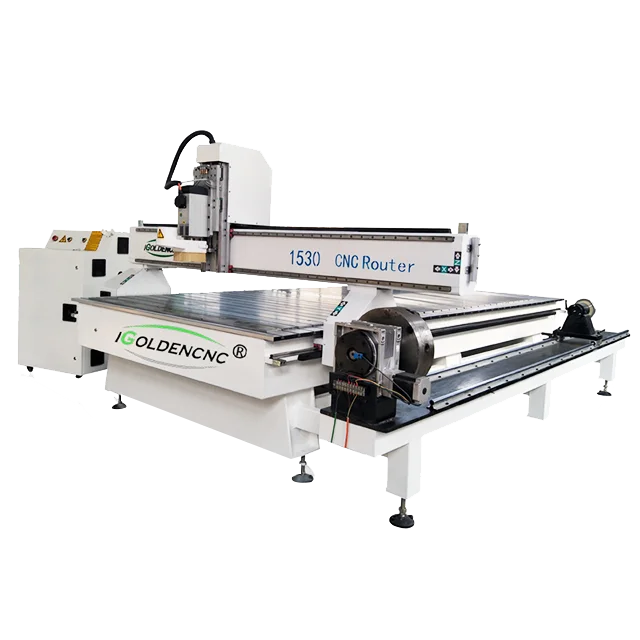

Related Products
Certifications
Buyer Feedback
Company Introduction
Jinan LuoJia Cnc Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that
specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.

The main configuration all adopt top parts which imported from Italy, Japan,Germany, etc.
We adopt international advanced producing technologies to improve our products. Our products
are widely used in advertising,woodworking, artworks, model, electric, CAD/CAM Industry Model,
Clothing, Package Printing, Marking, Laser Sealing and so on.
