Stone bridge saw machine 4 5 axis cnc marble polishing machine,granite saw bridge cutting machine for kitchen countertops

FOB Reference Price:Get Latest Price
$13,500.00 - $27,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
IGS-3020
Working Area:
3000*2000mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, HOME USE, Retail, Advertising Company
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
none
Showroom Location:
none
Condition:
New
Type:
Stone cutting machine
Use:
stone granite marble
Production Capacity:
100%
Place of Origin:
Shandong, China
Brand Name:
iGoldencnc
Voltage:
380V/50Hz
Power(W):
4000w
Dimension(L*W*H):
3000x2000mm
Weight:
2000KG
Certification:
CE ISO
Warranty:
2 years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Cnc Marble Router Stone Engraving Machine
Key Selling Points:
Multifunctional
Cutting thickness (max):
10mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 YEAR
Core Components:
MOTOR, Bearing
Name:
Fully Automatic Stone Polishing Machine
Application:
Stone Industrial
Model:
3000x2000mm
Function:
Stone Engraving Carving Cutting
Cutting materials:
Stone Marble Granite Tile
Feature:
High Cutting Efficiency
Blade diameter:
400-700mm
Cutting depth:
70-110mm
Control System:
CNC Control
Supply Ability
Supply Ability:
80 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case for Stone bridge saw machine 4 5 axis cnc marble polishing machine,granite saw bridge cutting machine for kitchen countertops
Port
qingdao port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Video Description

Stone bridge saw machine 4 5 axis cnc marble polishing machine,granite saw bridge cutting machine for kitchen countertops
Product Description

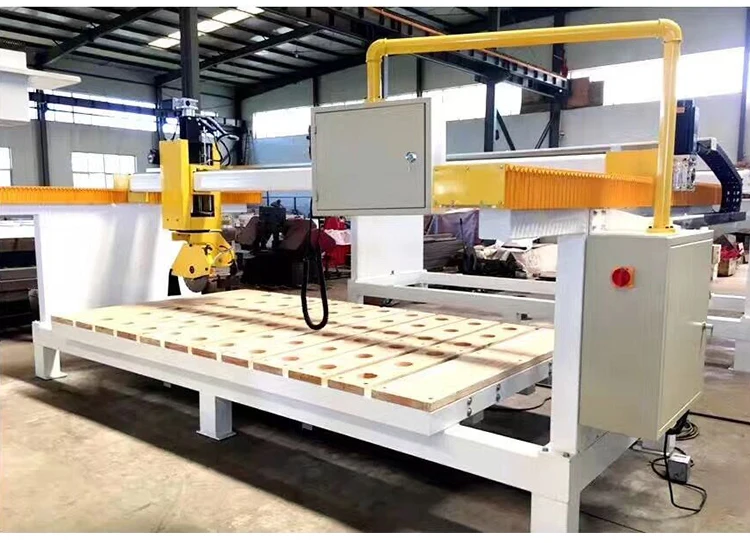

iGS-3020 is our newly designed CNC bridge saw with compact size.
1. It is with automatic tilting machine head and hydraulic tilting work table.
2. By using advanced computer control system to achieve multi programming methods, including manual programming or PC programming.
3. Achieve fully automatic processing operation and some powerful functions, like easy-operation auto cutting, edge polishing,
slotting, kitchen countertop processing, special shape processing and other operations.

- Compact structure, small area coverage, no need to do ground foundation.
- Using advanced computer control system to achieve higher working efficiency.
- Powerful functions combined in one machine to achieve almost all processing works for small sized factory.
- High quality electrical components with long service life and low maintenance cost.
Specification
Voltage
380v-3phase,50hz
Motor power
4 kw
Stroke of X axis
3000mm
Stroke of Y axis
2000mm
Stroke of Z axis
260mm
Stroke of A axis
360 degree rotation
Cutting speed of X axis
1-2000mm/min
Cutting speed of Y axis
1-2000mm/min
Cutting speed of Z axis
1-1000mm/min
Rotating speed of A axis
0-7R/min
Cutting thickness
100mm
Cutting precision
0.2mm
Programing way
Manual or Import graphics
Overall size
4500x2750x2100mm
Weight
2000kg
Warranty
1 year for the machine frame, 6 months for electric parts

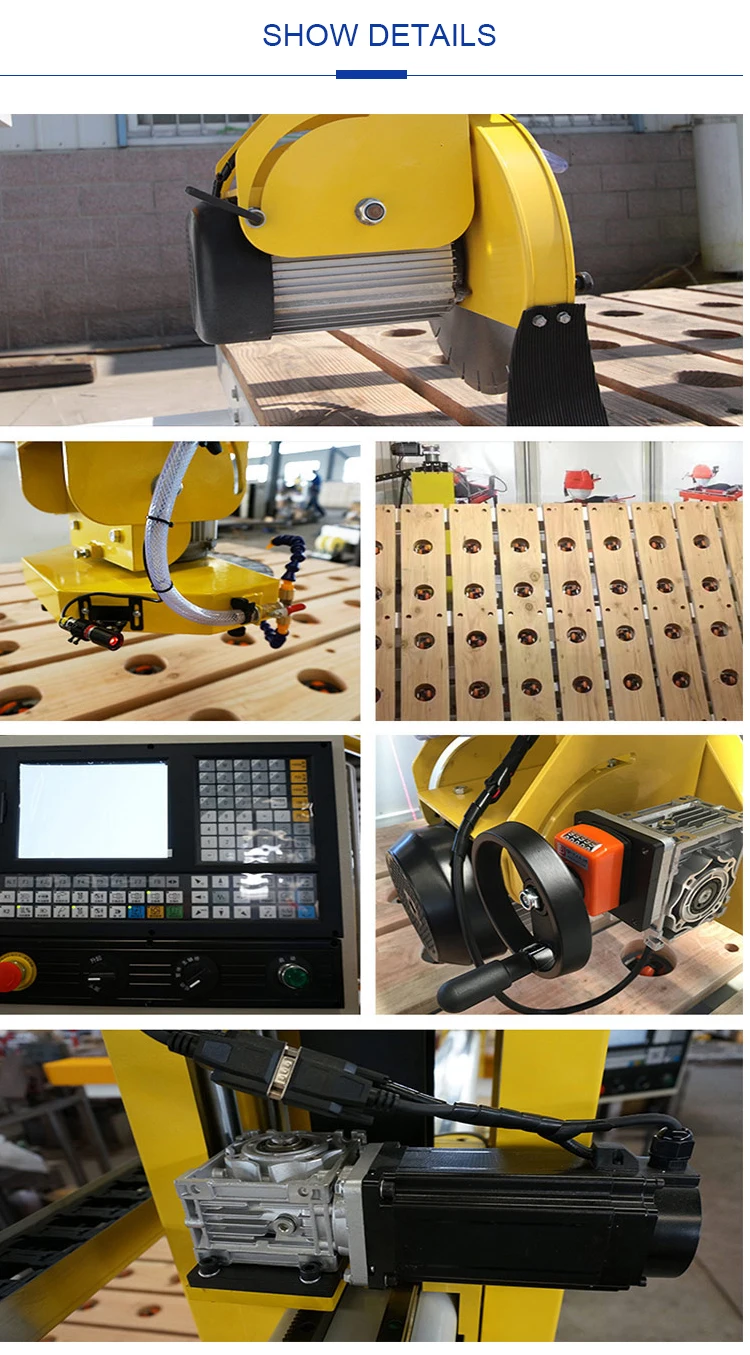

Machines in our workshop:

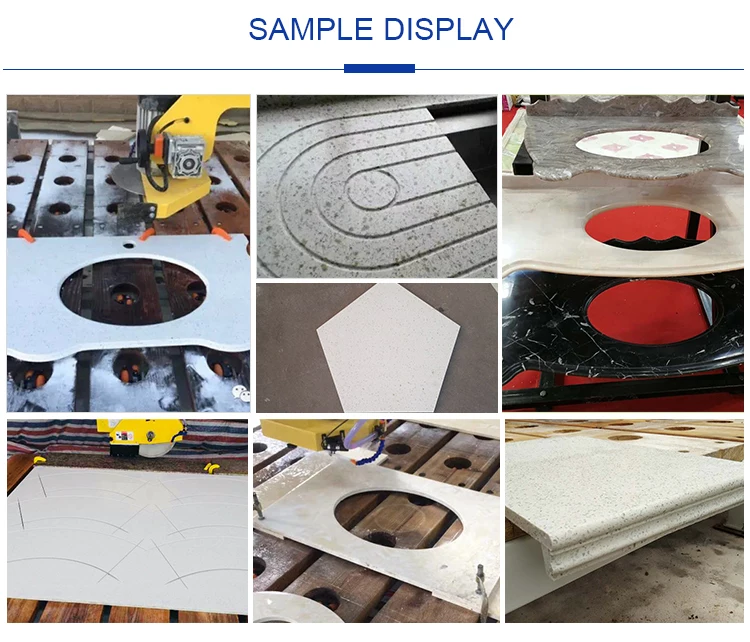

Bridge saw cutting machines Application & Samples:


Company Profile
Jinan LuoJia Cnc Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that
specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc. The main configuration all adopt top parts which imported from Italy, Japan,Germany, etc.

We adopt international advanced producing technologies to improve our products.Our products
are widely used in advertising,woodworking, artworks, model, electric, CAD/CAM Industry Model,
Clothing, Package Printing, Marking, Laser Sealing and so on.
