Marble cnc router granite engraving cnc 3 axis 1325 1825 stone carving machine for hot sale

FOB Reference Price:Get Latest Price
$3,500.00 - $6,300.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
IGS-3A-1325
Working Area:
2500*1300mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized logo (Min. Order: 1 Sets) Less
Samples:
$5,500.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Retail
After Warranty Service:
Video technical support, Online support
Local Service Location:
none
Showroom Location:
none
Condition:
New
Type:
Stone Engraving Machine
Use:
granite
Production Capacity:
100%
Place of Origin:
Shandong, China
Brand Name:
iGoldencnc
Voltage:
AC220V/380V-50HZ
Power:
3Kw/4.5KW/5.5KW
Dimension(L*W*H):
1400*2720mm
Weight:
1650
Certification:
CE
Warranty:
2 years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
High-accuracy
Cutting thickness (max):
6mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 YEAR
Core Components:
MOTOR
Keywords:
cnc stone carving machine
Motor:
Yaskawa/ Servo Motor
Control system:
NC Studio
Usage:
marble, granite
Spindle power:
3KW
Working area:
1300x2500*200mm
Transmission:
X,Y-helical rack and pinion,Z-TBIball screw from Taiwan
Driver:
Servo Driver
Inverterr:
Fuling
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export wooden case for Marble cnc router granite engraving cnc 3 axis 1325 1825 stone carving machine for hot sale
Port
Qingdao/Tianjin/Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description
Specification
NO
Description
Parameters
1
Working area
1800*2500mm
2
Feed height
200mm
3
Transmission
X/Y rack and pinion, Z ball screw
4
Table structure
T slot with clamp
5
Spindle power
4.5KW*2
6
Spindle speed
24000r/min
7
Travelling speed
25m/min
8
Working speed
20m/min
9
Working Delicacy
0.005mm
10
Repositioning Accuracy
0.05mm
11
Driving Motor
Stepper
12
Control System
DSP/Ncstudio Control System
13
Command Code
G Code*.u00*.mmg*.plt
14
Power(without spindle)
1500W
15
Voltage
AC380/50HZ
16
Running Environment
Temperature:0 degree~45 degree
17
Software
Artcam/Type3,other CAD/CAM
Application & Samples:
Marble, granite, China black, bluestone, jade, ceramic, crystal, glass, plastic, plexiglass, PVC board, bamboo, aluminum panels, metal and other materials.

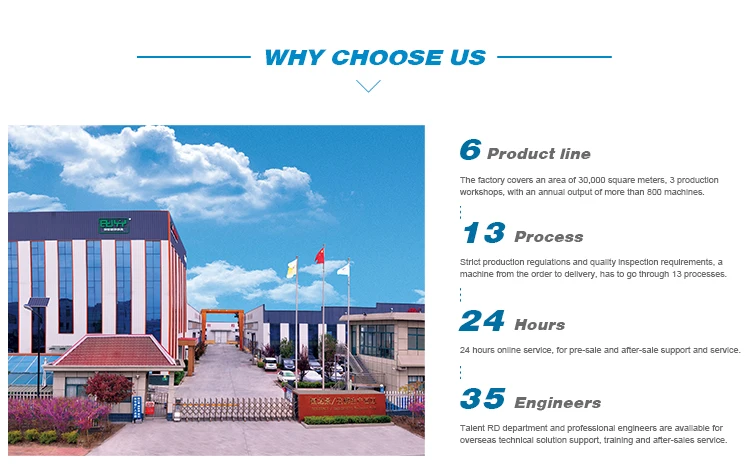

Company Profile
